Castable

Waste Incinerator Use Corundum Wearing Resisting Refractory Plastics

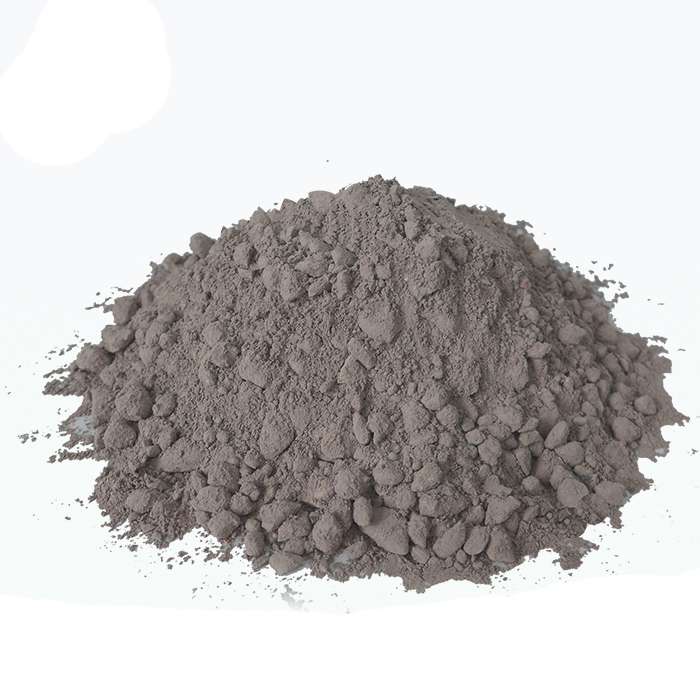

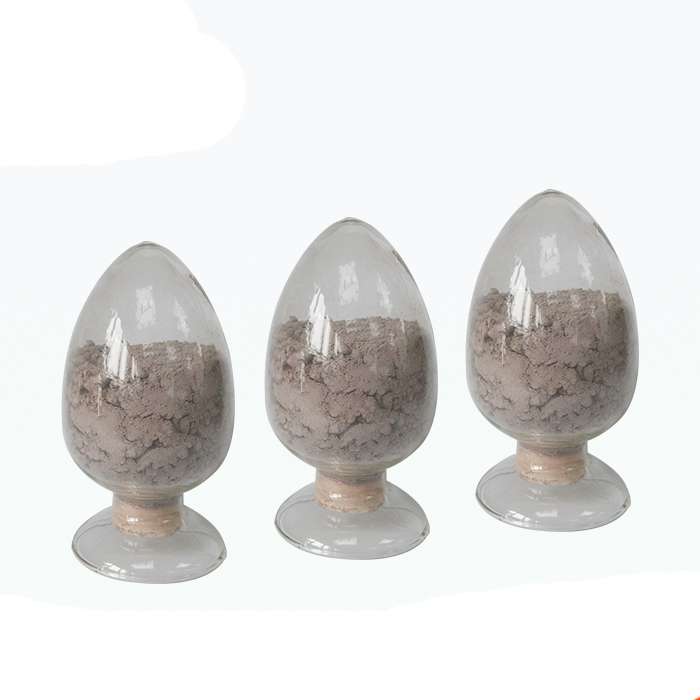

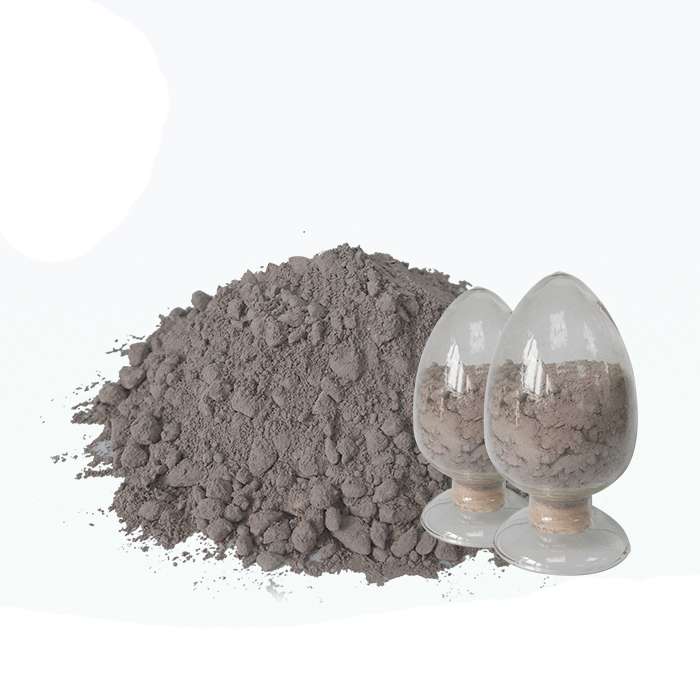

Corundum Wearing Resisting Refractory Plastics

Made of alumina, corundum aggregate,corundum fine powder, SiC and humectants, though the reasonable distribution, adjust the setting time by adding the hardening agent acccording to the local air conditions when installation, reach the harden effect by adding the aluminium dihydrogen phosphate in the plastic.



Product Details


Corundum Wearing Resisting Refractory Plastics Feature



Fast repairing, easy operating, free drying-out,etc.. Features.



Corundum Wearing Resisting Refractory Plastics Application



Widely used in the working zone of damaged wall of gasifier, industry boiler, boiler in power station,circulating fluidized bed boiler, waste Incinerator, etc.



Technical Dates of Corundum Wearing Resisting Refractory Plastics



              ITEM



PROPERTY

Corundum refractory plastics HXCPR-1

Corundum refractory plastics HXSPR-1

ZrO2+Cr2O3 Corundum refractory plastics HXZCCPR-1

Al2O3    %  ≥

70

---

75

SiC      %  ≥

-

80

3(Cr2O3)+2(ZrO2)

Refractoriness %  ≤

1500

1650

1650

B.  D.     @110℃×24h g/cm3 ≥

2.80

2.60

2.85

C.C.S

MPa

110℃×24h

70

75

75

1000℃×3h

110

115

110

M.O.R (MPa)

110℃×24h

9

9

9

1000℃×3h

13

14

13

P.L.C %    1000℃×3h

-0.3--- +0.3

-0.3--- +0.2

-0.3--- +0.3



*They are typical values in this table, not a basis for order.
