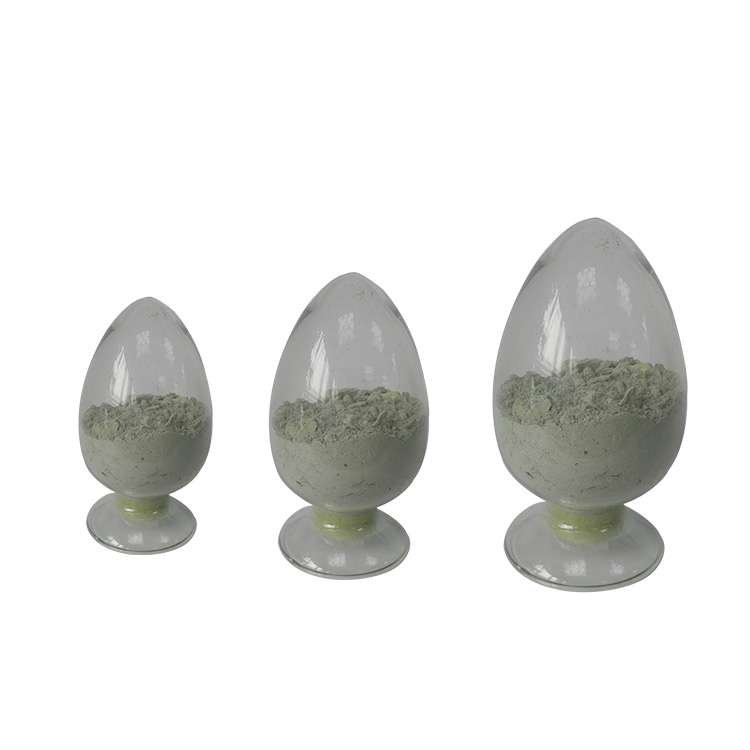

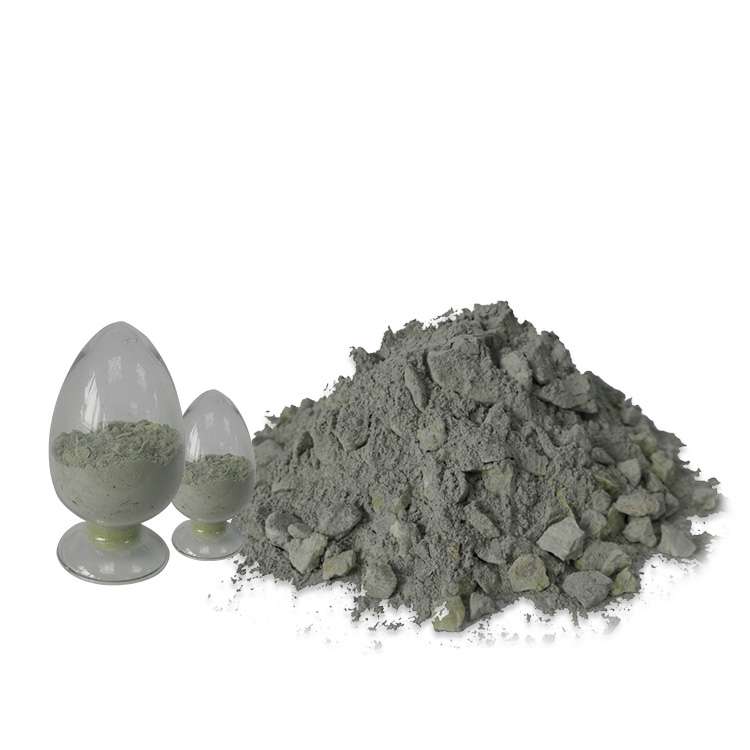

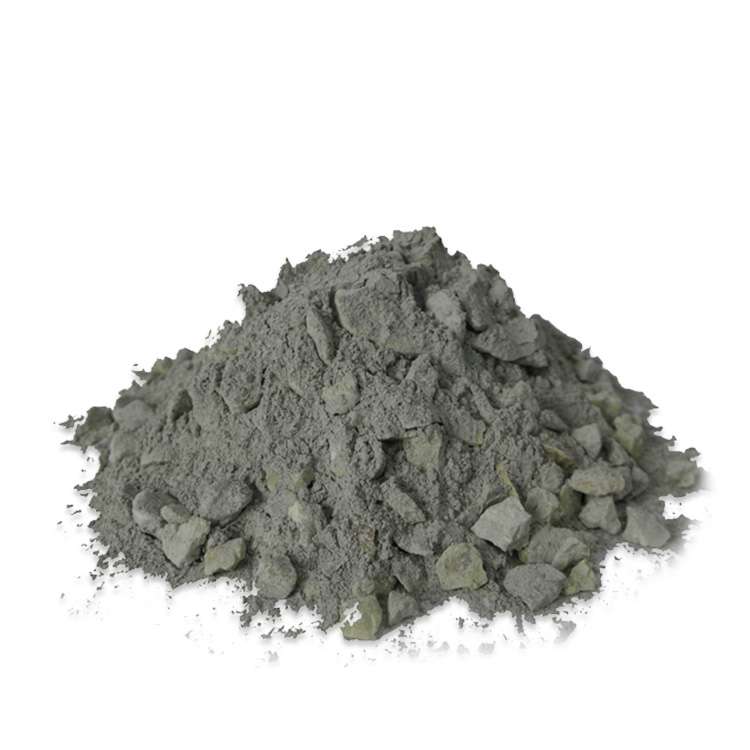

Description of High Alumina Castables
High alumina high strength refractory castable is one of the unshaped refractory materials.It is made of refractory aggregate . refractory powder . binders and other additives. It is loose, No fixed shape,Has high liquidity, Casting and vibration molding,Can use directly or use after add appropriate water or other liquid. It is one of the new type refractory material of don't need calcination.
Contact us
Liuzhai Town, Xinmi City, Henan, China, 452370
Description of High Alumina Castables
High alumina high strength refractory castable is one of the unshaped refractory materials.It is made of refractory aggregate . refractory powder . binders and other additives. It is loose, No fixed shape,Has high liquidity, Casting and vibration molding,Can use directly or use after add appropriate water or other liquid. It is one of the new type refractory material of don't need calcination.
Technical Dates of High Alumina Castables
Item | HW-LN | HWBH-50 | HWBH-60 | HWBH-65 | HWBH-68 | HWS-P4 | |
AI2O3(%) ≥ | 40 | 50 | 60 | 65 | 68 | - | |
AI2O3+MgO(%) ≥ | - | - | - | - | - | 70-80 | |
B.D g/cm3≥ | 110℃x16h | 2.20 | 2.25 | 2.45 | 2.50 | 2.60 | 2.80 |
1350℃x3h | 2.15 | 2.20 | 2.40 | 2.45 | 2.55 | 2.80 | |
C.C.S.(MPa)≥ | 110℃x16h | 35 | 40 | 45 | 50 | 55 | 50 |
1350℃x3h | 50 | 60 | 65 | 68 | 70 | 80 | |
M.O.R MPa≥ | 110℃x16h | 5 | 5 | 6 | 7 | 7 | 10 |
1350℃x3h | 8 | 7 | 8 | 9 | 9 | 8 | |
P.L.C(%)≤ | 110℃x16h | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | - |
1350℃x3h | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | - | |
moisture addition% | 6.5±0.5 | 6.0±0.5 | 5.5±0.5 | 5.0±0.5 | 5.0±0.5 | 4.5±0.5 | |
service temperature℃ | 1300 | 1350 | 1350 | 1350 | 1350 | 1350 | |
THE MAX.service temperature℃ | 1500 | 1600 | 1600 | 1600 | 1600 | 1600 |
