Industry Furnace

High Strength Wearing-Resisting Si-Mullite Refractory Brick

Silica Mullite Brick mainly used in the lower transition zone of the cement rotary kiln, the outer surface temp. It is the ideal refractory brick used in the lower transition Zones of above new type of dry method 5000 TPD cement plant.



Product Details

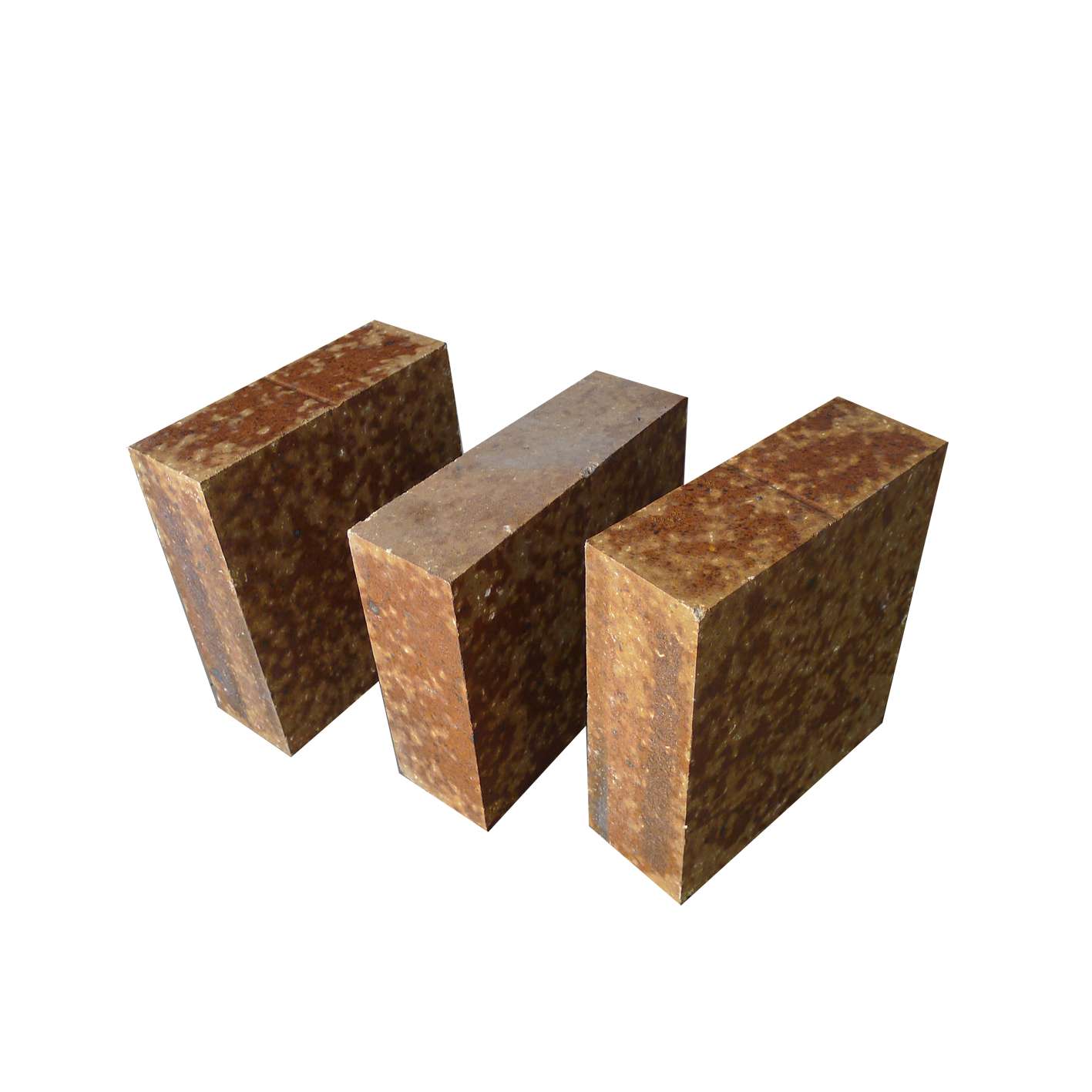

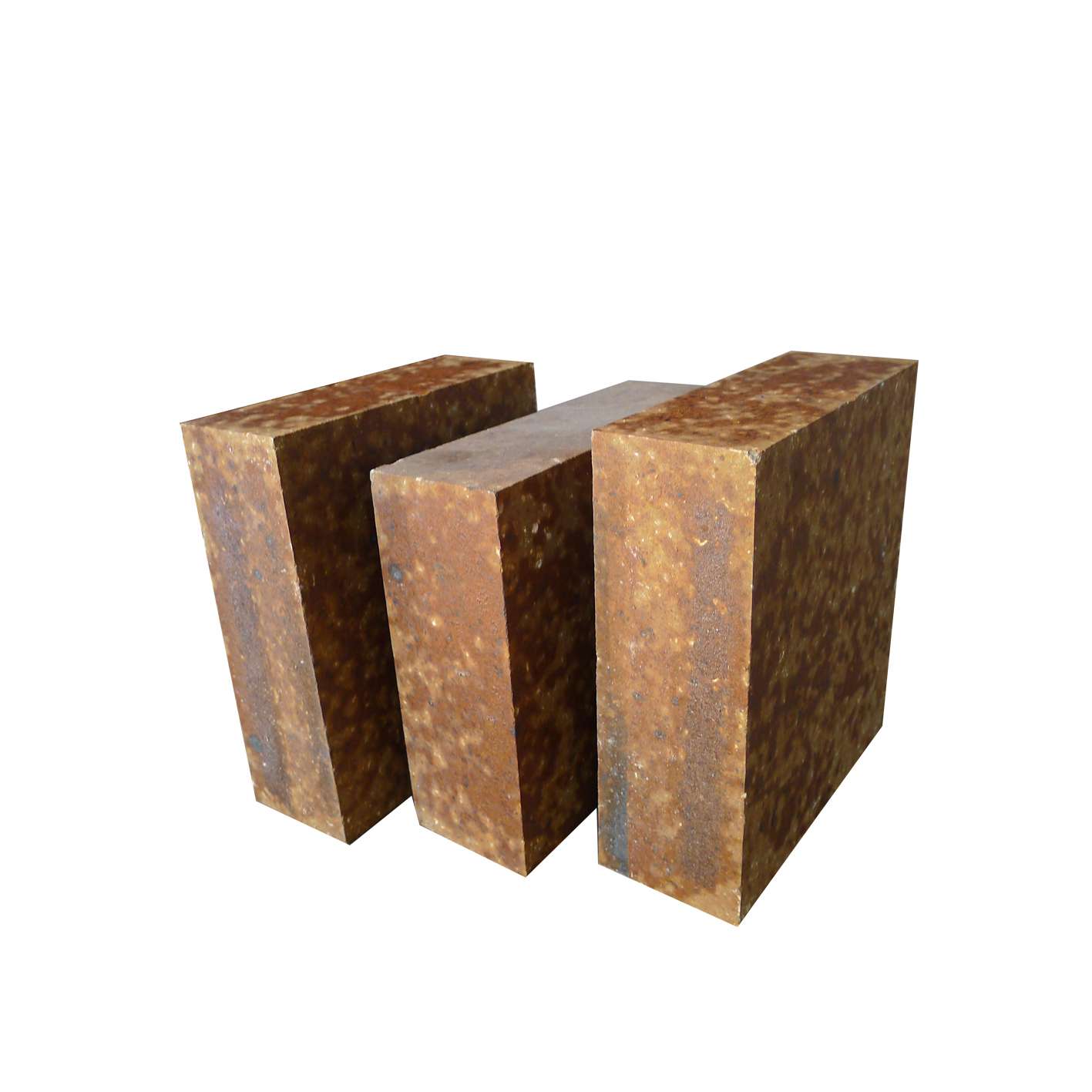

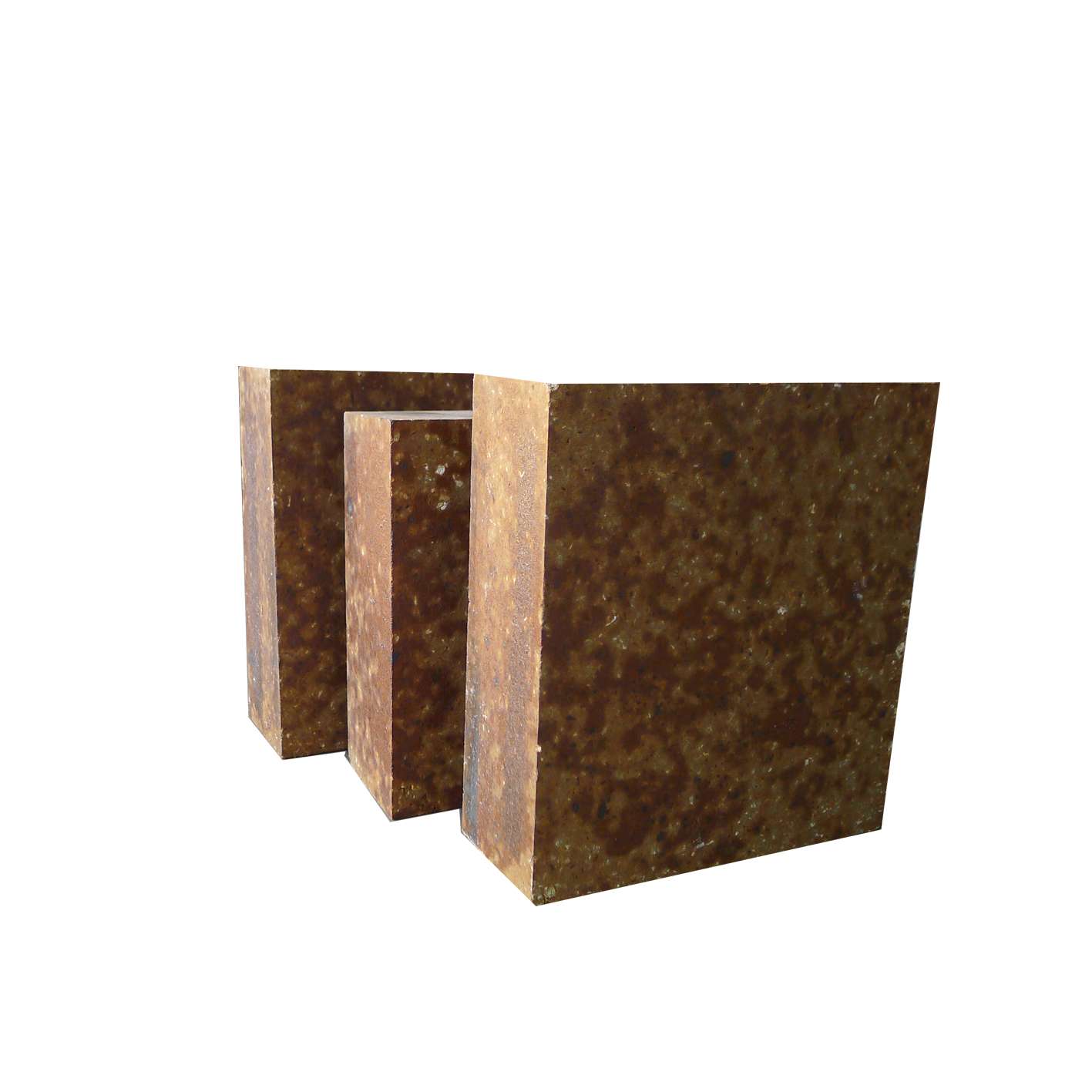

High Strength Wearing-Resisting Si-Mullite Refractory Brick



Made of the high grade bauxite clinker as the aggregate, adding the BFA,SiC, ɑ-Al2O3 fine powders in the substrate, through the reasonable proportion of the particles,high pressing, high temperature sintered.



Silica Mullite Brick Feature



High strength, high wearing-resisting at high temperature state, low thermal conductivity,  strong thermal shock stability, etc. Features.



Silica Mullite Brick Application



Mainly used in the lower transition zone of the cement rotary kiln,the outer surface temp. Of the rotary kiln body bring down  evenly about 80℃ comparing to the magnesia-Spinel refractory brick, bring down evenly about 40℃ comparing to the traditional 1650,1680 Si-Mullite refractory brick. It is the ideal refractory brick used in the lower transition Zones of above new type of dry method 5000 TPD cement plant.



Technical Dates of Silica Mullite Brick



ITEM



PROPERTY

High strength wearing-resisting Si-Mullite brick

 HXSSM-01

Si-Mullite Refractory brick

HXSM-1650



Si-Mullite Refractory brick

HXSM-1680



Al2O3       %  ≥

67

63

65

SiO2+SiC   %  ≥

25

35

30

A.  P.      %  ≤


20

22

B.  D.    g/cm3 ≥

2.50

2.55

2.65

C. C. S.    (MPa)≥

120

90

85

T.  S. R. (1100℃ Cool water)     times ≥

25

10

12

R.U.L.@0.2MPa  Ta ℃≥

1670

1600

1650

Refractoriness  ℃≥

1790

1790

1790

T.   C.. (1000℃)

W/m*K  ≤

1.80

2.5

2.3

Wearing Resisting Rate

(cc )

8.4

8.2

7.8



*They are typical values in this table, not a basis for order.
