Refractory Brick

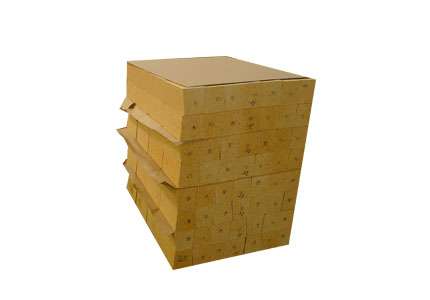

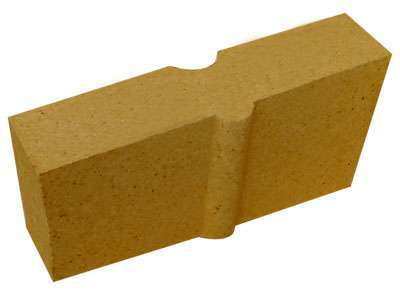

Low Creep High Alumina Brick

Low Creep High Alumina Brick are characterized by high bulk density, low porosity, and nice elevated temperature properties, especially, excellent resistance to compression creep under high temperature for a long period.


Product Details


Characters of Low Creep High Alumina Brick



Low creep high alumina brick products use superfine grade bauxite clinker as main raw material, supplemented by special additive, via high pressure molding, high temperature firing. It has great capacity of heat storage, and the advantages of small creep rate which is suitable for middle and small blast furnace hot blast stove.



Applications of Low Creep High Alumina Brick



Low Creep High Alumina Brick Wildly used in blast furnaces, hot air stoves, the blast furnace, hot blast stove regenerative chamber walls and grid, combustion chamber, mix the wind chamber and contact pipe and all kinds of unburned brick nozzle.


Technical Dates of Low Creep High Alumina Brick



 Item

Al2O3  %≥

A·P %≤

C·C·S MPa≥

B·D g/cm3≥

Creep under 0.2MPa x 50h≤

P·L·C %

1550℃ x 2h

1450℃ x 2h

HXDRL-155

75

20

60

2.65-2.85

1550℃ 0.6

0.1-0.2


HXDRL-150

70

21

50

2.65-2.85

1550℃ 0.6

0.1-0.2


HXDRL-145

65

21

60

2.50-2.70

1450℃ 0.6

0.1-0.2


HXDRL-140

65

22

50

2.40-2.60

1400℃ 0.6


0.1-0.2

HXDRL-135

65

22

50

2.35-2.55

1350℃ 0.6


0.1-0.4

HXDRL-130

60

22

45

2.30-2.5

1300℃ 0.6


0.1-0.4

HXDRL-127

55

23

40

2.30-2.5

1270℃ 0.6


0.1-0.4
