Mullite Shaped Brick

Mullite bricks offer high density, low porosity, good hot strength, and good slag resistance.


Product Details

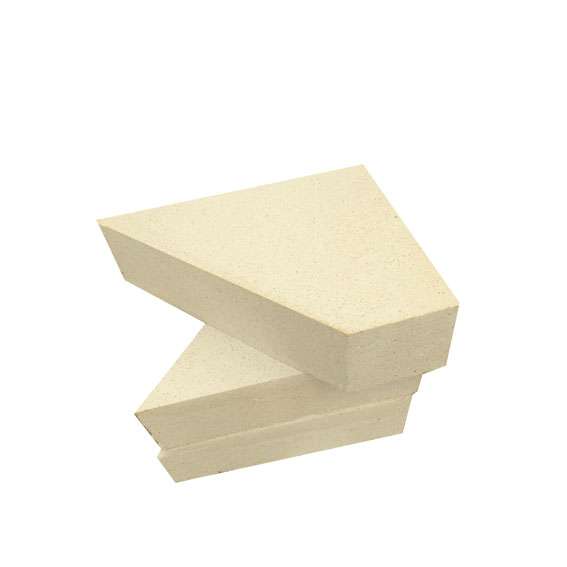

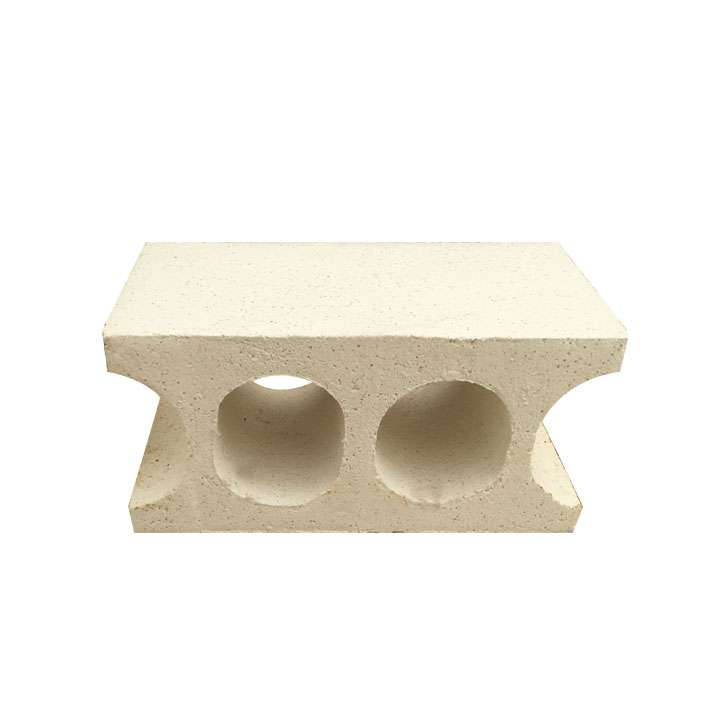

Description of Mullite Shaped Refractory Brick



Mullite Shaped Refractory Brick is made of synthetic fused mullite or sintered mullite, pressed by selected shaping processes, and fired in high-temperature furnaces.


Mullite bricks offer high density, low porosity, good hot strength, and good slag resistance.


Mullite bricks are preferred for high temperature, high load applications, such as at the hot end of regenerative chambers of glass melters, the superstructure of the furnace, and the arch of glass fiber melters, due to their excellent thermal properties, excellent strength at high temperature, great resistance to thermal shock, etc.



Technical Dates of Mullite Shaped Refractory Brick



Classification

Mullite Bricks

Al2O3 (%)

70

Bulk Density(g/cm3)

2.6

Apparent Porosity(%)

18% max

Cold Crushing Strength

90 Mpa min.

Thermal Shock Resistance

≥25 times (1000℃ water cooling)

Refractoriness Under Load:0.2MPa℃≥

1550

Thermal Shock Conductivity(700℃)≤

1.5 W/m·k

Refractoriness(℃)

1790℃ min

Service Temperature(℃)

1550

Abrasion Resistance (℃)

8
