Silica bricks are mainly application covers high-temperature zones such as HBS dome, upper stack, and upper checker unit and so on.
Contact us
Liuzhai Town, Xinmi City, Henan, China, 452370

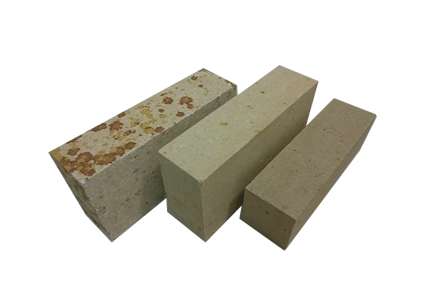

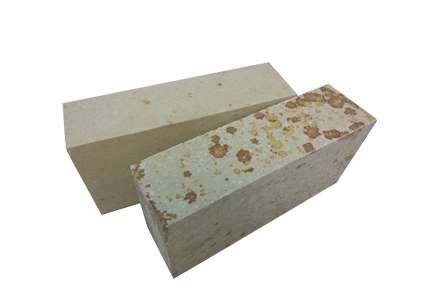

Description of Silica Brick
Silica bricks for HBS are characterized by low thermal expansion, slight residual quartz, lower true density, and good thermal shock resistance at 600℃ and above, high refractoriness, under load low creep as well as regular precise size.
The main application covers high-temperature zones such as HBS dome, upper stack, and upper checker unit and so on.
Technical Dates of High Alumina Brick
Item | Silica Bricks For Hbs | Silica Bricks For Coke Oven | ||
Bricks For Crown | Checker Bricks | Bottom And Sidewall | The Other | |
SiO2 ％≥ | 95 | 94 | ||
C·C·S MPa≥ | 35 | 30 | 30 | 25 |
R·U·L ℃≤ | 1650 | |||
P·L·C（1450℃ x 2h）％ | 0~+0.2 | 0~+0.2 | ||
A·P ％≤ | 22 | 23 | 22（23） | 24 |
Creep under high temperature（0.2MPa,1550x50h）％≤ | 0.8 | |||
ture density g/cm3≤ | 2.35 | 2.34 | 2.35 | |
thermal expansion（1000℃）％,≤ | 1.26 | 1.28 | 1.3 | |
