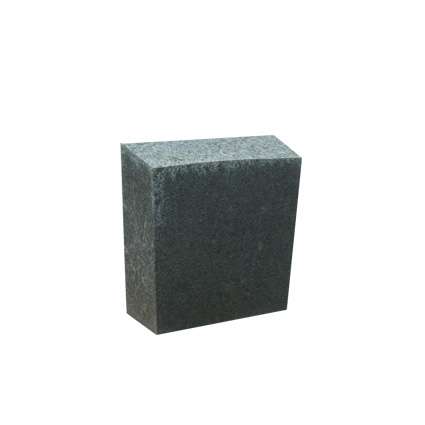

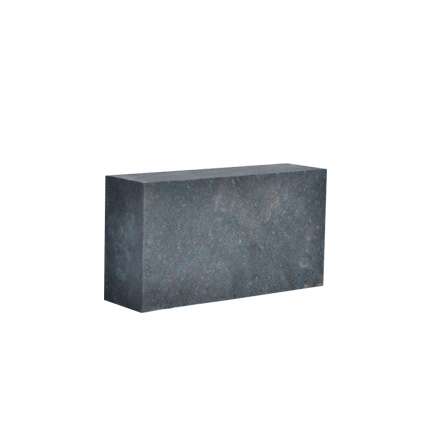

Dense SiC Refractory Brick

Dense SiC Refractory Brick used in the severe wearing zone of waste incinerator, such as side wall and bottom of furnace in the propeller.



Product Details


Dense SiC Refractory Brick Production Description



Made of the industry SiC as main material, adding some certain of SiO2 or mullite fine sand, through mixing, drying,shaping and sintering at high temperature.



Dense SiC Refractory Brick Feature



High strength at normal and high temperature states, larger thermal conductivity, Excellent thermal shock stability,strong wearing resistance at high-temp. States. Strong chemical erosion resistance,etc. features.



Dense SiC Refractory Brick Application



Used in the severe wearing zone of waste incinerator, such as side wall and bottom of furnace in the propeller.



Technical Dates of Dense SiC Refractory Brick



      Item

Brand

 SiC (%)≥

Al2O3 (%)≥

A. P.

(%)≤

B. D.

(%)≥

Rupture  Strength

    (MPa)≥

Thermal conductivity
(1000℃)   W/(m*k)≤

HXSB-1

87

2

11

2.70

20

13.4

HXSB-2

67.5

8

11

2.65

18

5.8

*They are typical values in this table, not a basis for order.
