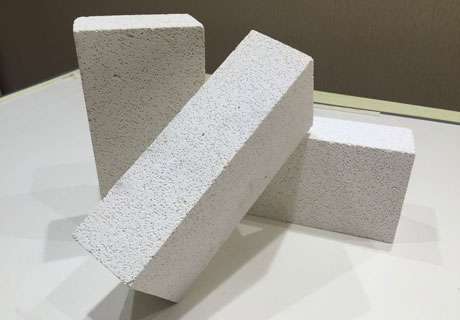

Mullite Insulation Brick is a kind of quality refractory insulation material for resisting high temperature with features of lightweight, low thermal conductivity, thermal insulation, and high compression strength in the high-temperature furnaces or kilns. Mullite Insulation Bricks are mainly used for the top of hot blast stove, stack and bottom of blast furnace, regenerative chamber of glass melting furnace, the lining of ceramic high-temperature furnace and so on.
Contact us
Liuzhai Town, Xinmi City, Henan, China, 452370

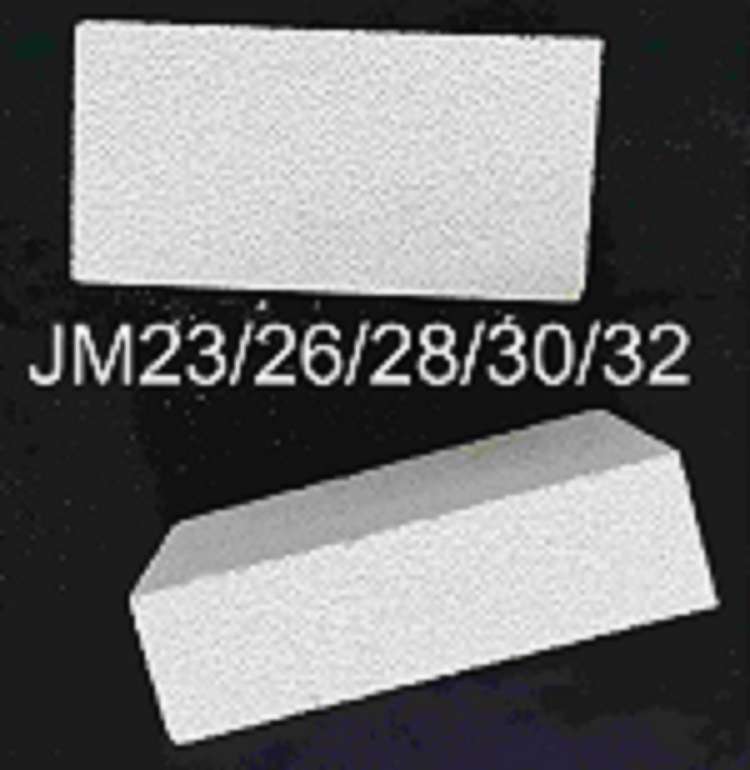

Mullite Insulation Brick Product Technical Dates
Model No. | Al2O3 (%) | Fe2O3 (%) | B. D. (g/cm3) | ColdCompressive Strength (MPa) | P. L. C , (%) | T. C.(350±25℃), (W/M*K) |
HXJM-23 | ≥40.0 | ≤1.0 | ≤0.60 | ≥1.0 | 0.5~ -1.0@1200℃ | ≤0.20 |
HXJM-26 | ≥55.0 | ≤1.0 | ≤0.85 | ≥2.50 | 0.5~ -1.0@1400℃ | ≤0.30 |
HXJM-28 | ≥65.0 | ≤1.0 | ≤0.95 | ≥3.0 | 0.5~ -1.0@1510℃ | ≤0.37 |
HXJM-30 | ≥70.0 | ≤0.8 | ≤1.05 | ≥3.0 | 0.5~ -1.0@1620℃ | ≤0.44 |
HXJM-32 | ≥77.0 | ≤0.6 | ≤1.35 | ≥3.5 | 0.5~ -1.0@1730℃ | ≤0.60 |
Remark: P.L.C.@℃ is meaning the experience temperature based on the T/C. | ||||||
